MagicLab's self-developed servo joint modules integrate motors, reducers, encoders, drive electronics and control functions into compact motion units for humanoid robots, quadruped robots and collaborative robotic systems. The portfolio includes planetary, harmonic and linear modules covering different torque, speed, precision, size and force-output requirements. Selected models provide dual encoders, temperature feedback, CAN, EtherCAT or RS485 communication, and multiple control modes for torque, position, velocity, stiffness and damping. With compact structures, high torque density, responsive control and thermal-management design, the modules support robot legs, waists, arms, ankles, forearms and precision linear mechanisms. Module selection should be based on joint position, load, motion range, control protocol and operating environment.

Servo Joint Module Application Scenarios

Research & Education

Smart Guided Tours

Industrial Manufacturing

Events & Entertainment

Inspection & Security

Smart Logistics

Healthcare & Wellness

Public Safety

Household Services

Servo Joint Module Parameters

Specifications
Planetary Series
P110	φ112 × 71.5 mm \| 1900 g \| Rated 90 N·m \| Peak 360 N·m \| 48-54 V \| CAN/EtherCAT
P90N20	φ92 × 63.4 mm \| 1100 g \| Rated 35 N·m \| Peak 130 N·m \| 48-54 V \| CAN/EtherCAT
D90	φ98 × 48.5 mm \| 590 g \| Rated 9 N·m \| Peak 25 N·m \| 24-36 V \| CAN
P60N30	φ64 × 57.1 mm \| 532 g \| Rated 20 N·m \| Peak 60 N·m \| 48-54 V \| CAN/EtherCAT
Harmonic Series
H70	φ70 × 96 mm \| 900 g \| Rated 30 N·m \| Peak 96 N·m \| 48-54 V \| CAN/EtherCAT
H60	φ64 × 60 mm \| 590 g \| Rated 33 N·m \| Peak 90 N·m \| 48-54 V \| CAN/EtherCAT
Linear Series
T28	φ32 × 155 mm \| 340 g \| Rated thrust 300 N \| Peak thrust 750 N \| Stroke 40 mm \| Speed 116 mm/s \| 48 V \| RS485
General Functions
Dual-encoder options, temperature and motion feedback, high-frequency control, and torque/position/velocity control are available according to model.

Confirm final specifications with MagicLab before integration.

Servo Joint Module Series & Engineering Advantages

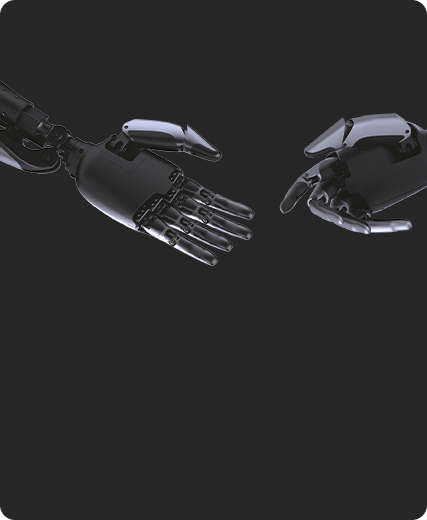

Planetary Joint Modules

P110, P90N20, D90 and P60N30 provide a broad torque range for full-size and mid-size humanoid joints, quadruped legs and other high-load rotary mechanisms.

Harmonic Joint Modules

H60 and H70 combine compact dimensions, high positioning accuracy and strong bearing support for robot arms, waists, collaborative joints and precision manipulation.

Linear Joint Module

T28 integrates a ball screw, motor and dual encoders to deliver compact linear force for forearms, ankles and precision linear-motion applications.

Integrated Control & Feedback

Built-in drive electronics, encoder feedback, temperature monitoring and high-speed communication simplify wiring, improve controllability and accelerate robot-system integration.
