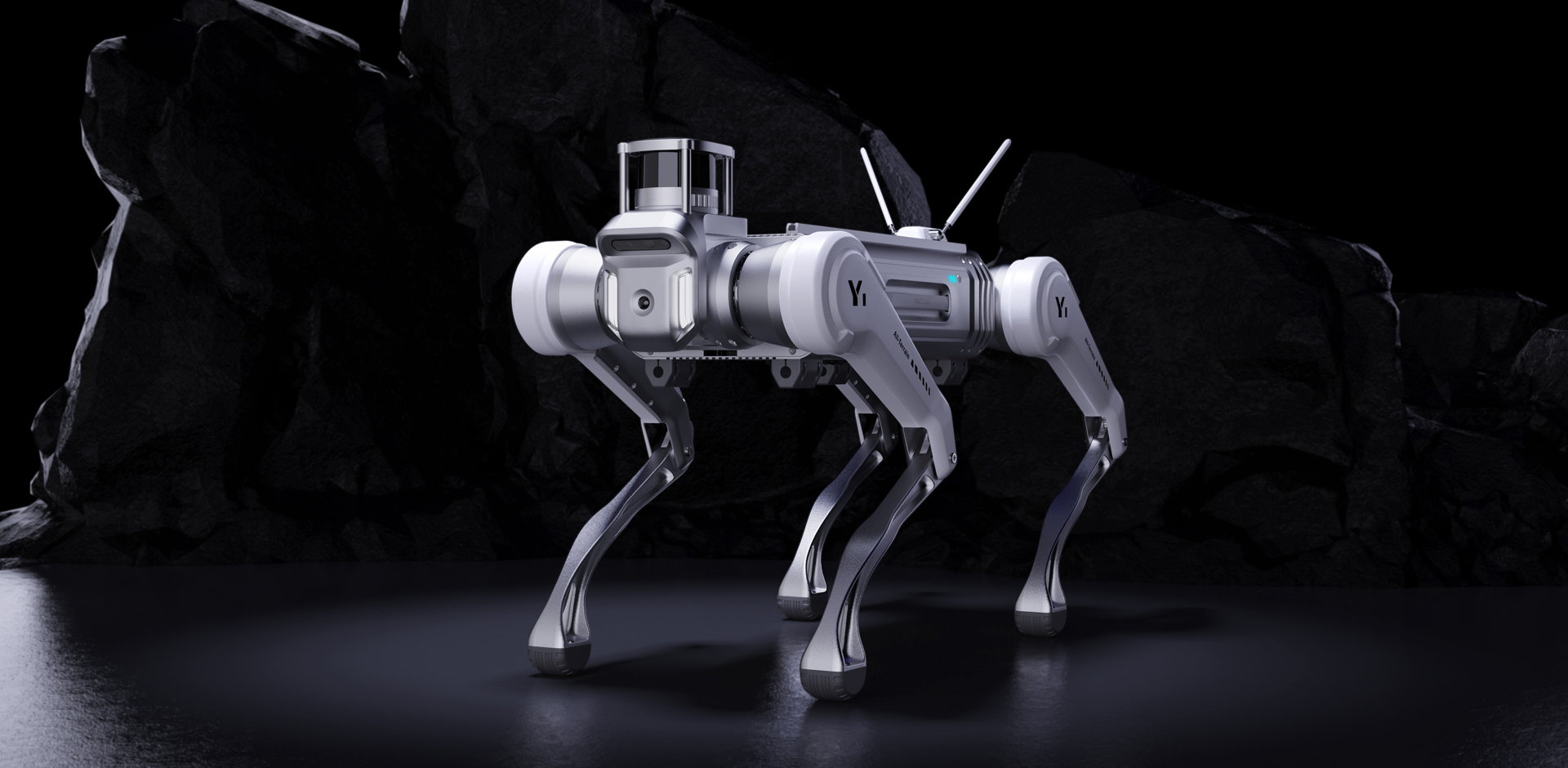

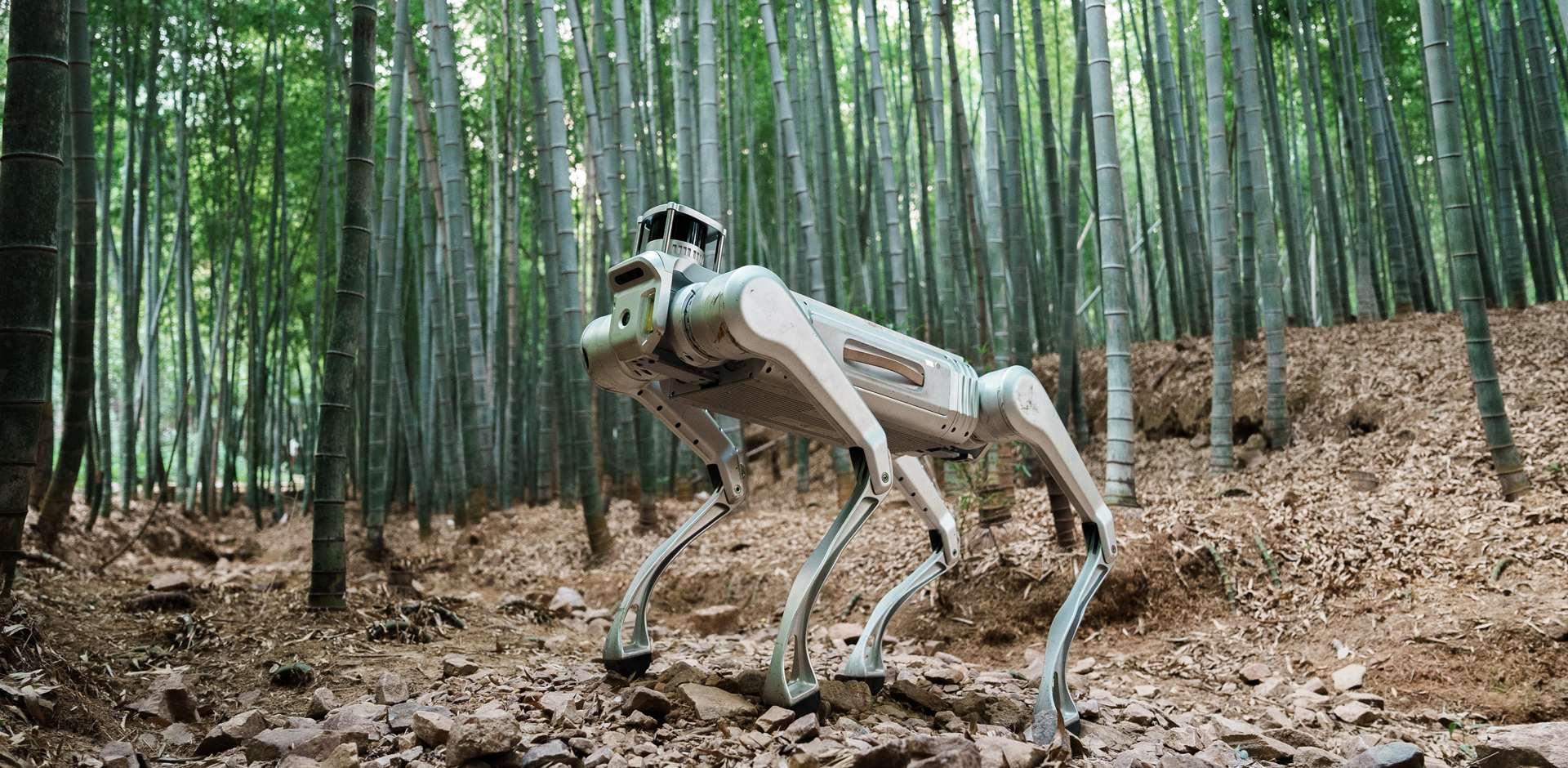

See MagicDog Y1 traverse rough terrain, climb obstacles and carry professional payloads, demonstrating industrial-grade stability, high-speed mobility and all-weather mission capability for inspection, rescue and public-safety operations.

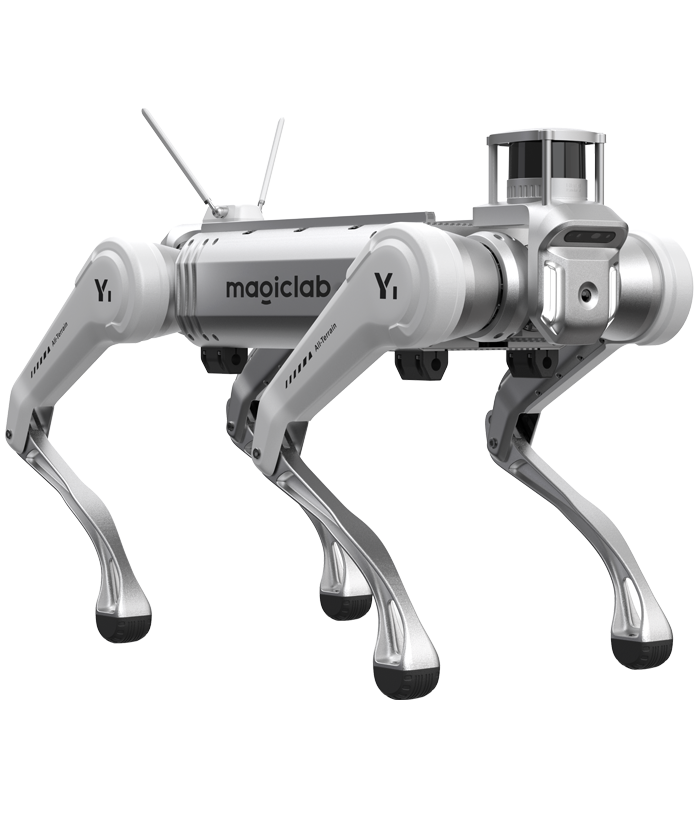

| Parameter Name | Parameter Details |
| Dimensions (L × W × H) | 1050mm×458mm×810mm |
| Total Weight (with Battery) | 70Kg (with Battery) |
| Maximum Payload | 150kg |
| Dynamic Payload | 45kg |
| Maximum Speed | 6m/s |
| Maximum Climbing Height | ≥60cm |
| Battery Capacity | 45Ah (2400Wh), Voltage 54V |
| Operating Time | 4–6h ( >4 h continuous walking with 20 kg load ) |
| Ingress Protection Rating | IP67 |
| Maximum Slope Angle | ≥45° |
| Base Computing Power | 8-Core High-Performance CPU |
| Extended Computing Power | High-Performance Computing Module (157 TOPS) |
| Communication Module | Wi-Fi 6, BT 5.2, 5G Communication Module (optional for some versions) |
| Perception Sensors | 3D LiDAR ×1 + Depth Cameras ×2 + Optical Cameras ×2 (configurations may vary) |
| User Expansion Interfaces | (24V+485 output)*4 power supply + power bus, USB3.0*4, (12V output+EthNet)*3 power supply + network; EthCat x 1 |
| Mounting Holes for Expansion Parts | Extension Boards, Sliding Rails, Screw Mounts, Payload Platform |
| Supported Expansion Devices | Infrared Thermal Imager, Dual-Light PTZ Camera, Gas Sensor, Acoustic Imager, Partial Discharge Sensor, etc. |
Aerospace-grade construction supports operation in dust, rain, snow and extreme temperatures from -20°C to 55°C.
A 45 kg dynamic payload, 150 kg maximum load and 6 m/s speed balance carrying capacity with rapid field movement.
The 2400 Wh battery supports 4-6 hours of operation and can be replaced rapidly to reduce mission downtime.
3D LiDAR, depth cameras and optical cameras support broad environmental awareness and navigation in complex operational areas.
Standardized power, Ethernet, RS485, USB and EtherCAT interfaces enable rapid integration of inspection and rescue equipment.

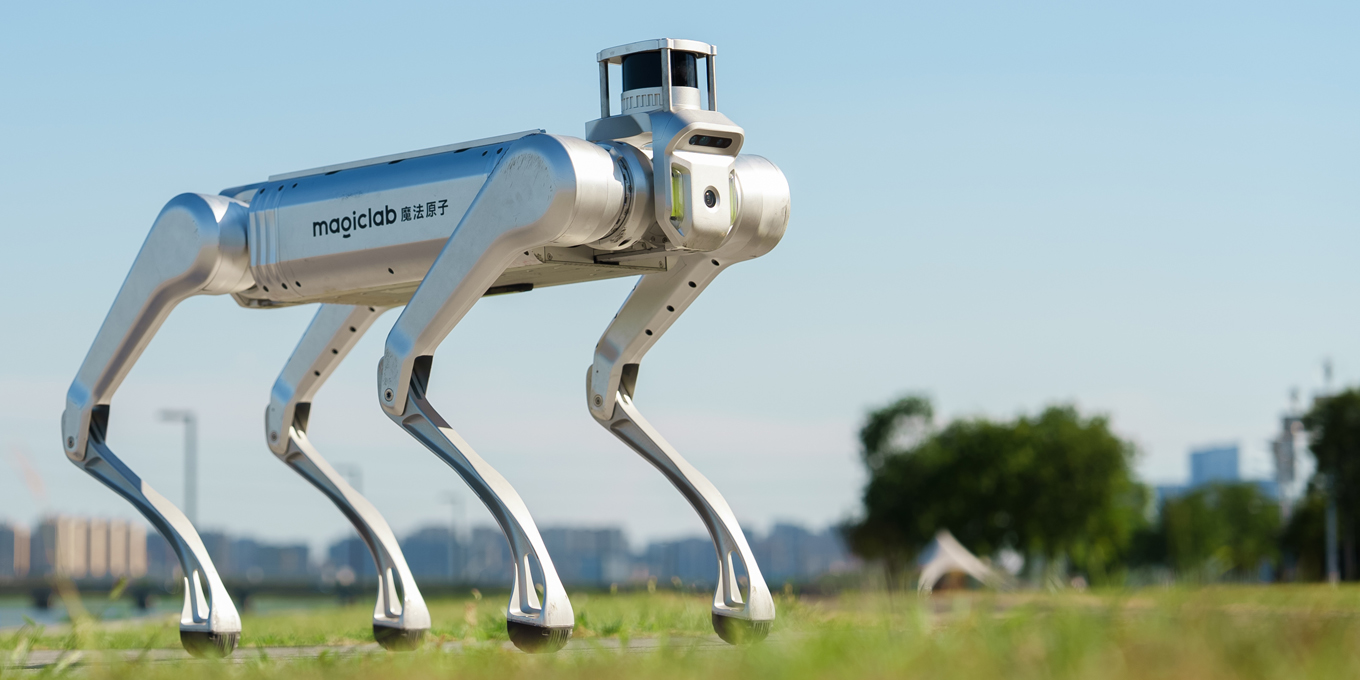

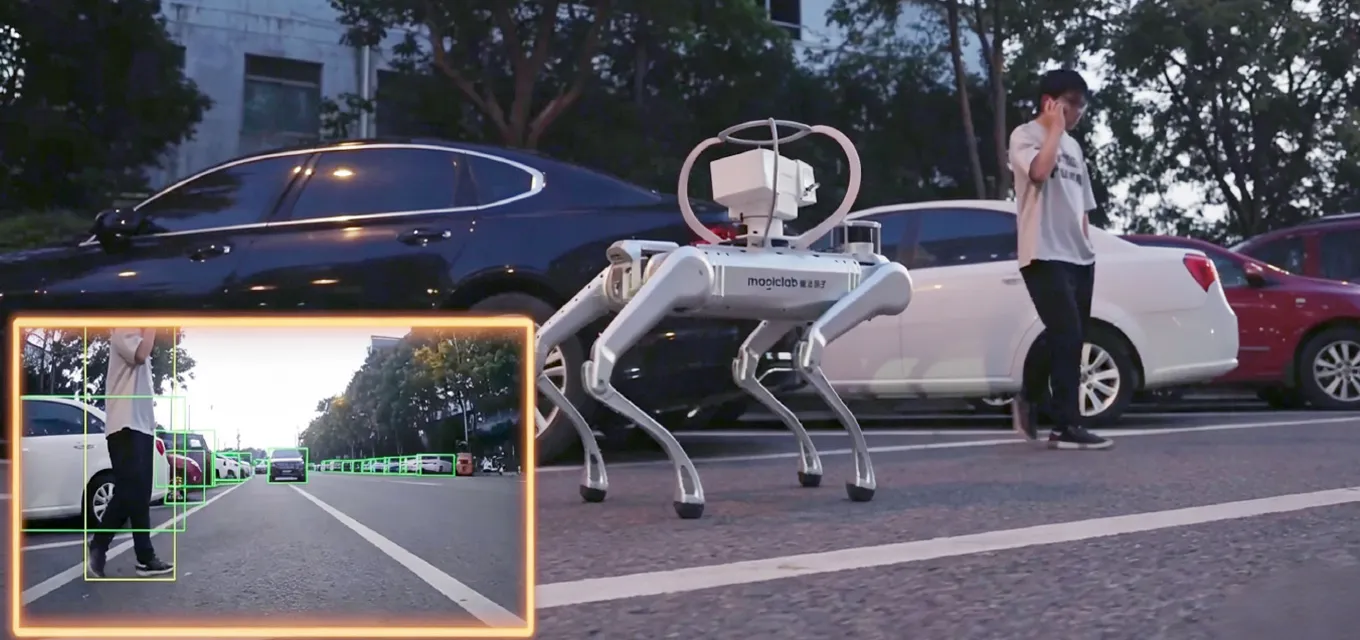

MagicDog Y1 provides an open, plug-and-play expansion platform for industrial deployment. Standard power and communication interfaces support rapid integration of thermal imagers, dual-light PTZ cameras, gas sensors, acoustic imagers and partial-discharge sensors. Optional 5G communication, high-performance computing and one-click dispatch integration help connect the robot with remote operation, inspection and emergency-response workflows. MagicLab can provide configuration selection, payload integration, deployment guidance and after-sales technical support according to project requirements.
